Model: LT-S860X(X8)
Overall dimensions (mm): 1640 * 950 * 1370
Net weight (kg): 235
Walking speed (km/h): 0 - 7
Maximum slope: 18%
Turning radius (m): 1.5
Water tank volume (L): 130
Sewage tank volume (L): 135
Floor cleaning width (mm): 860 (2 x 17 inches)
Water absorption width (mm): 1140
Cleaning efficiency (square meters per hour): 680
Brush motor power (W): 380W
Water absorption motor power (W): 450W
Motor drive power (W): 800 (Rear-wheel drive, with electronic brakes)

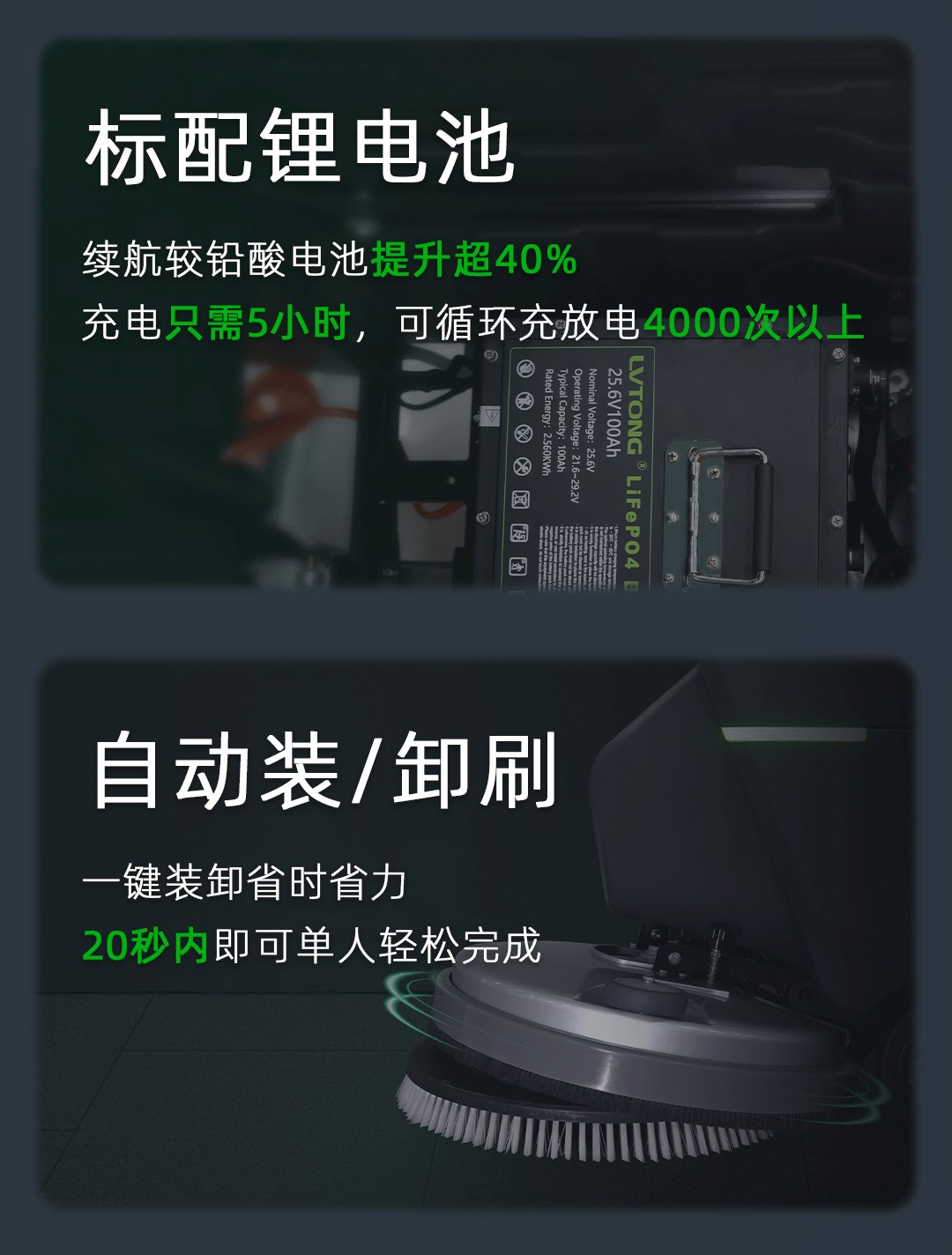

Battery: 24V 100AH, Lithium battery
Charger: 24V 20A (Lithium Battery)
Charging time: 5 hours
Battery continuous operation time: 3 hours - 5 hours

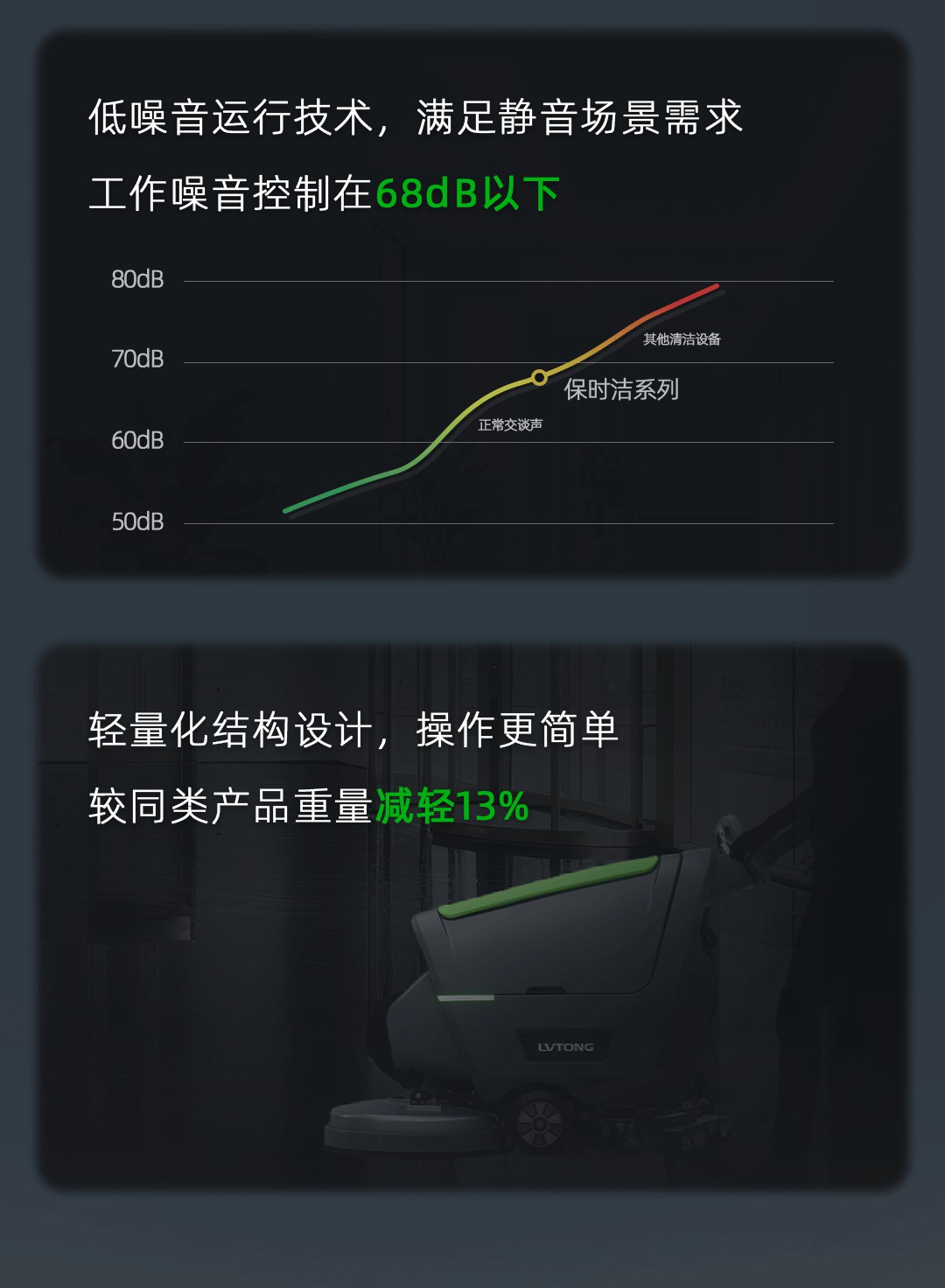

Work noise (dB(A)): 68
Model: LT-S860X(X8)
Overall dimensions (mm): 1640 * 950 * 1370
Net weight (kg): 235
Walking speed (km/h): 0 - 7
Maximum slope: 18%
Turning radius (m): 1.5
Water tank volume (L): 130
Sewage tank volume (L): 135
Floor cleaning width (mm): 860 (2 x 17 inches)
Water absorption width (mm): 1140
Cleaning efficiency (square meters per hour): 680
Brush motor power (W): 380W
Water absorption motor power (W): 450W
Motor drive power (W): 800 (Rear-wheel drive, with electronic brakes)
Battery: 24V 100AH, Lithium battery
Charger: 24V 20A (Lithium Battery)
Charging time: 5 hours
Battery continuous operation time: 3 hours - 5 hours
Work noise (dB(A)): 68
Stable quality, low failure rate | Brush motor overload and short circuit protection |
Overload and short-circuit protection for suction motors | Pipeline blockage protection |
Automatic brush application | Automatic brush unloading |
Battery low power protection, protecting battery lifespan | Electric water release |
Color screen buttons | Water-powered electric lifting mechanism |
When retreating, the water shield automatically rises to prevent damage. | When the water suction motor is turned on, the water level automatically drops. |
Soft start for the rear axle motor, providing a comfortable driving experience. | With memory function and simplified operation |
Insert IC card and press the power button to turn on the device. | One-click startup mode |
ECO/Standard/High-Efficiency/Dirty-Mode | 3.5-inch LCD color screen |
Color screen display parameters and alarm prompts | Charging protection |
Audio and Bluetooth/USB interfaces | Built-in charger |
Seat switch / Anti-misoperation safety protection | Automatic deceleration upon turning |
Low water level alarm for the water tank | Water absorption delay function |
Garbage collection bin | Stop automatically when the water reaches full level. |
Brush plate electric lifting | Brush plate electric pressurization: Heavy dirt mode |
Water gun watering function: Equipped with a water pump | Electromagnetic valve: Water flow rate has two settings: 1.5 - 2.5 liters per minute. |
Equipped with warning lights | The former LED headlights |
Ambient lighting | Internet of Things + WeChat Mini Program: Optional |
