Model: LT-S560X(X6)
Overall dimensions (mm): 1400 * 770 * 1230 mm
Net weight (kg): 180
Walking speed (km/h): 0 - 7
Maximum slope: 15%
Turning radius (m): 1.3
Water tank volume (L): 85
Sewage tank volume (L): 90
Mopping width (mm): 560mm
Water absorption width (mm): 890
Cleaning efficiency (square meters per hour): 440
Brushing disc motor power (W): 550W
Water absorption motor power (W): 450W
Motor power (W) 400 - 500 (Rear-wheel drive, with electronic brakes)

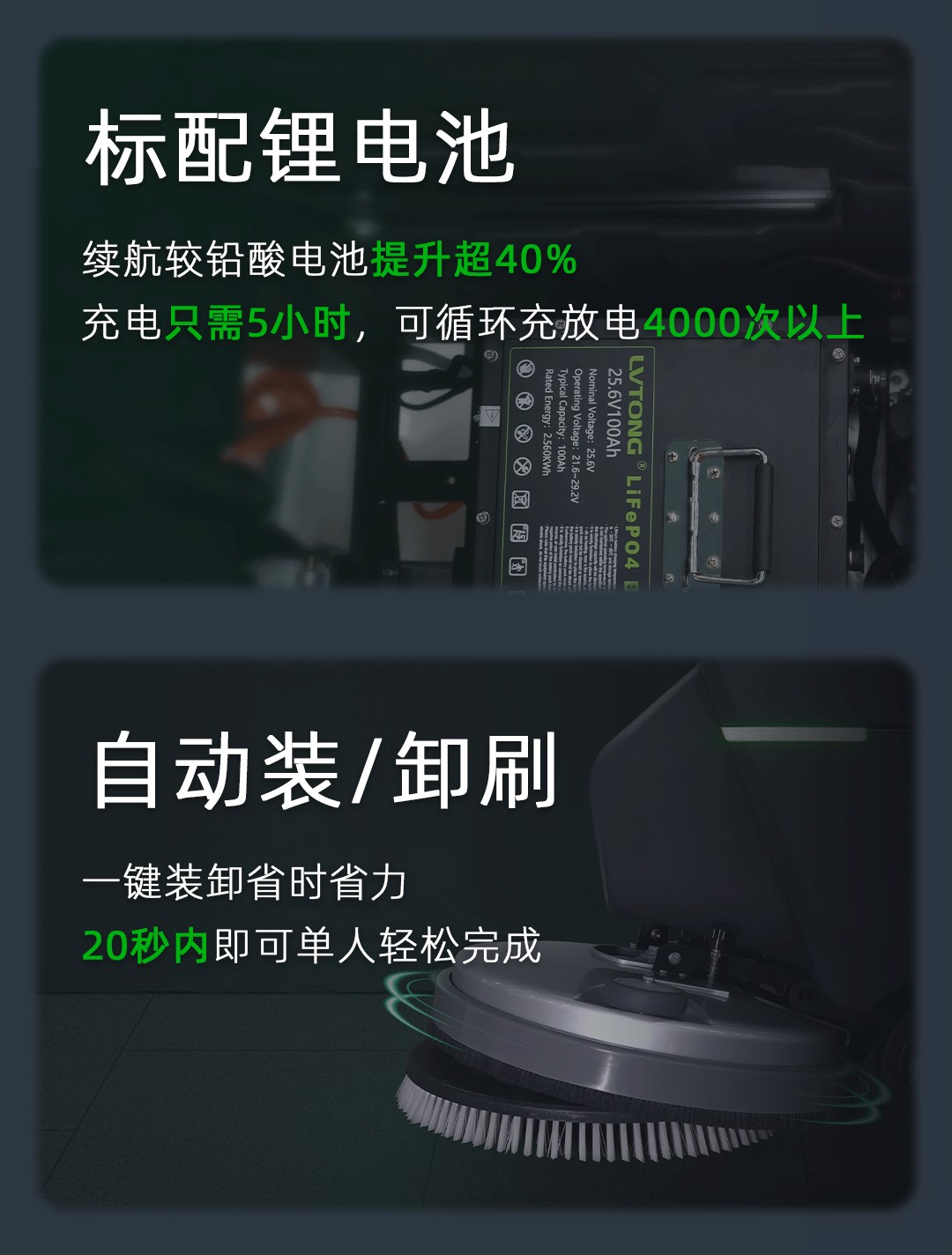

Battery: 24V 100AH lithium battery
Charger: 24V 20A (Lithium Battery)
Charging time: 5 hours
Battery continuous operation time: 3 hours - 5 hours
Work noise (dB(A)): 68
Model: LT-S560X(X6)
Overall dimensions (mm): 1400 * 770 * 1230 mm
Net weight (kg): 180
Walking speed (km/h): 0 - 7
Maximum slope: 15%
Turning radius (m): 1.3
Water tank volume (L): 85
Sewage tank volume (L): 90
Mopping width (mm): 560mm
Water absorption width (mm): 890
Cleaning efficiency (square meters per hour): 440
Brushing disc motor power (W): 550W
Water absorption motor power (W): 450W
Motor power (W) 400 - 500 (Rear-wheel drive, with electronic brakes)
Battery: 24V 100AH lithium battery
Charger: 24V 20A (Lithium Battery)
Charging time: 5 hours
Battery continuous operation time: 3 hours - 5 hours
Work noise (dB(A)): 68
Stable quality, low failure rate | Brush motor overload and short circuit protection |
Overload and short-circuit protection for suction motors | Pipeline blockage protection |
Water absorption delay function | Automatic brush application |
Automatic brush unloading | Battery low power protection, protecting battery lifespan |
Electric water release | Color screen buttons |
Water-powered electric lifting mechanism | When retreating, the water shield automatically rises to prevent damage. |
When the water suction motor is turned on, the water level automatically drops. | Soft start for the rear axle motor, providing a comfortable driving experience. |
With memory function and simplified operation | Insert IC card and press the power button to turn on the device. |
One-click startup mode | ECO/Standard/High-Efficiency Mode |

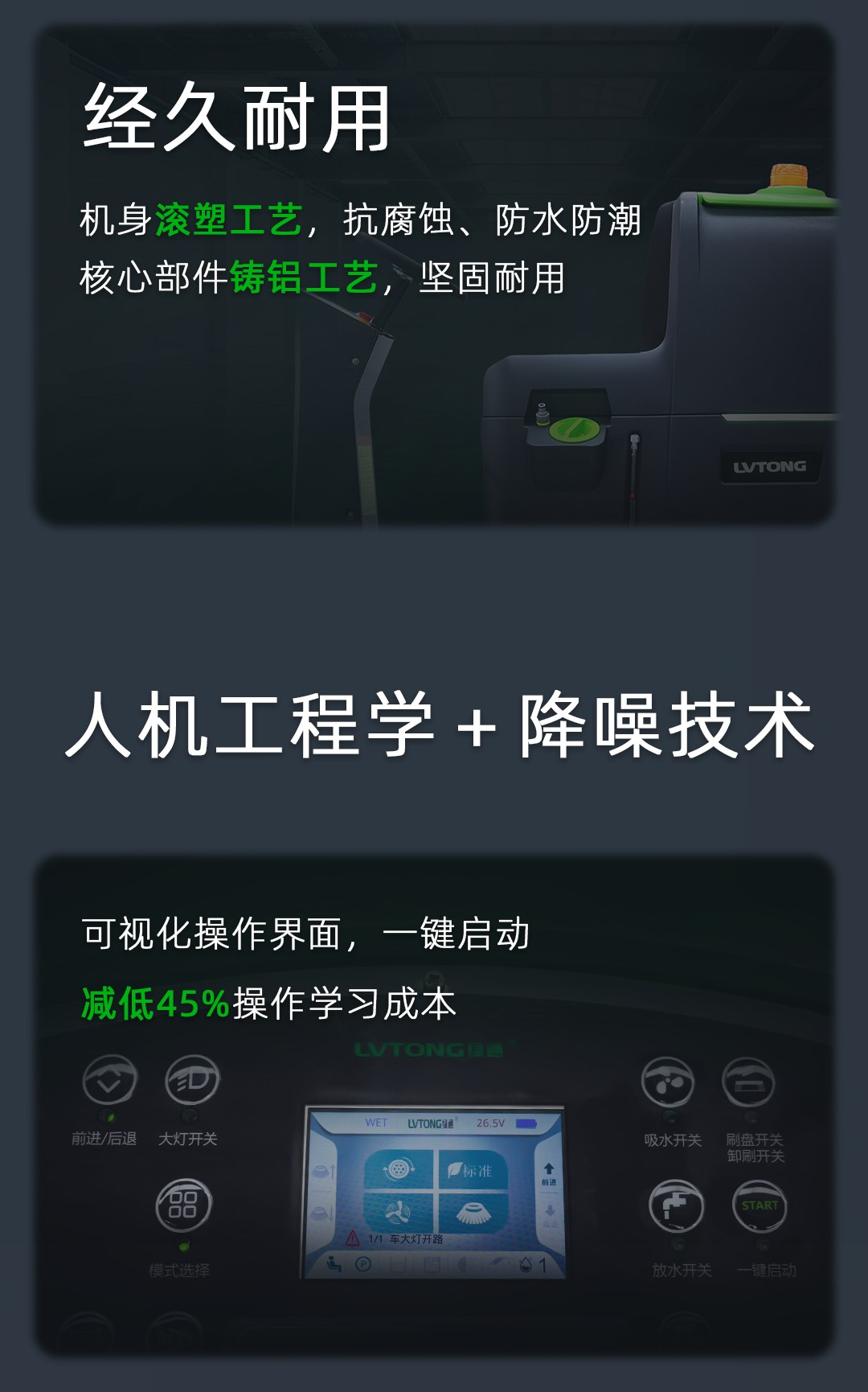

3.5-inch LCD color screen | Color screen display parameters and alarm prompts |
| Charging protection | Audio and Bluetooth/USB interfaces |

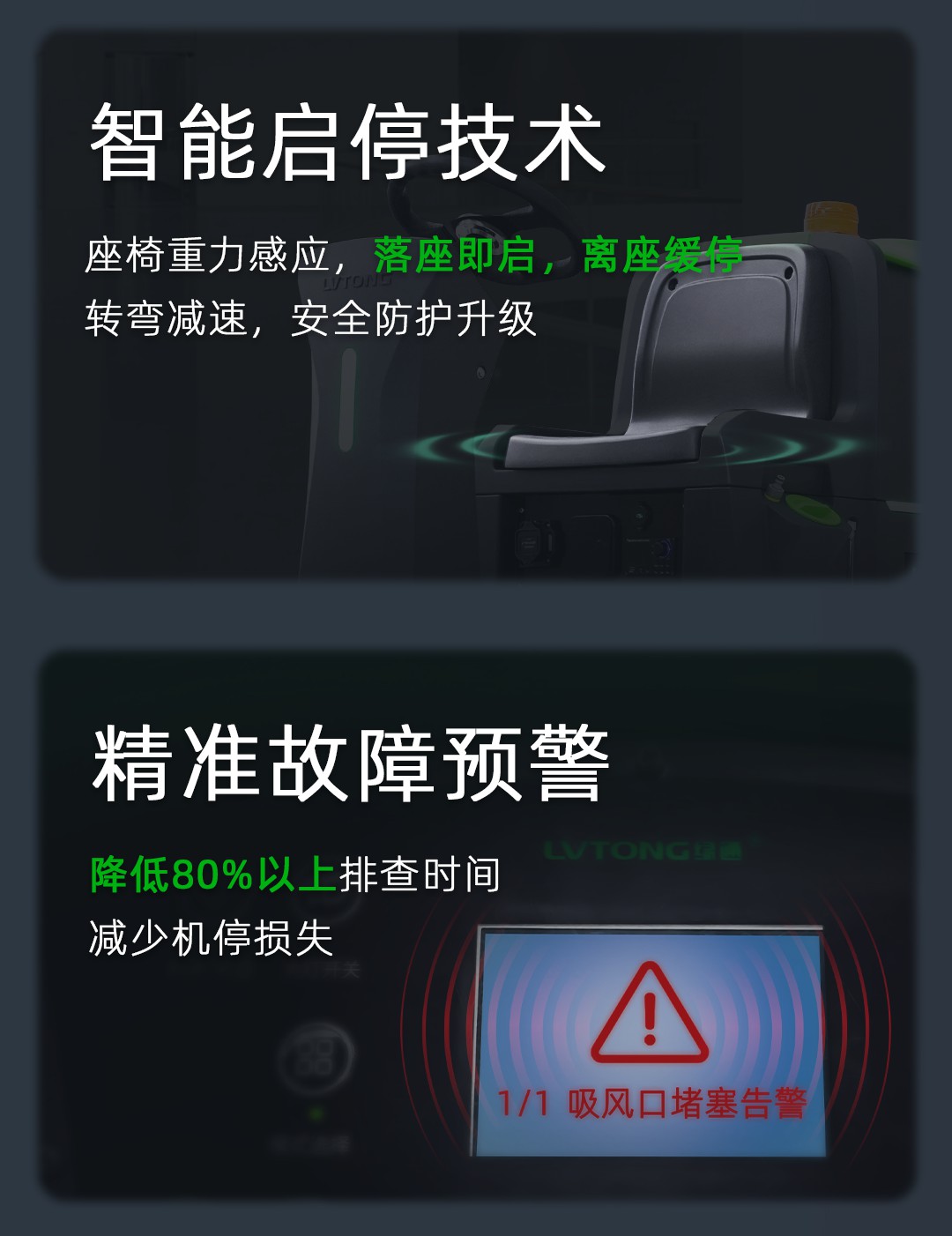

Built-in charger | Seat switch / Anti-misoperation safety protection |
Automatic deceleration upon turning | Low water level alarm for the water tank |
Water absorption delay function | Garbage collection bin |
Stop automatically when the water reaches full level. | Water gun watering function: Equipped with a water pump |
Electromagnetic valve: Water flow rate has two settings: 1.5 - 2.5 liters per minute. | Equipped with warning lights |
The former LED headlights | Ambient lighting |
Internet of Things + WeChat Mini Program: Optional |
